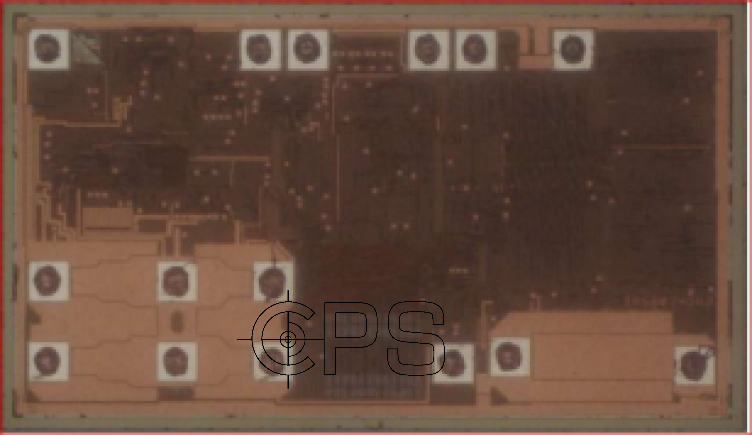

TPS62740

The TPS6274x is industry's first step down converter featuring typ. 360nA quiescent current and operating  with a tiny 2.2µH inductor and 10µF output capacitor.  This new DCS-Control™based device extends the light load efficiency range below 10µA load currents. TPS62740 supports output currents up to 300mA, TPS62742 up to 400mA. The device operates from  rechargeable Li-Ion batteries, Li-primary battery •  chemistries such as Li-SOCl2, Li-MnO2 and two or three cell alkaline batteries. The input voltage range up to 5.5V allows also operation from a USB port and •  thin-film solar modules. The output voltage is user  selectable by four VSEL pins within a range from •  1.8V to 3.3V in 100mV steps. TPS6274x features low •  output ripple voltage and low noise with a small output capacitor. Once the battery voltage comes close to the output voltage (close to 100% duty cycle) the device enters no ripple 100% mode operation to prevent an increase of output ripple voltage. The device then stops switching and the output is connected to the input voltage. The integrated slew rate controlled load switch provides typ. 0.6Ω on-  resistance and can distribute the selected output voltage to a temporarily used sub-system. The TPS6274x is available in a small 12 pin 2 × 3mm2 WSON package and supports a total solutions size of  31mm2



Chip physical measurement report, including

1. The process technology,
2. Die size
3. The number of poly and metal layer
4. High-resolution chip imaging region drawn on low resolution die photo

With high resolution chip imaging packed in BrigenOne, you can determinate the region to be analyzed the schematics inside

• If you decide to perform a circuit analysis, we will provide a complete delivery, including BrigenOne, EDIF format schematics, and PDF file
• Imaging area will be included in the deliverables, and the work scope of circuit analysis is open to discussing.
• The information we provide about this project will be quite accurate because we have completed high-resolution wafer images of each layer.
• The quotation for this project DOES NOT include high-resolution chip images packaged in BrigenOne. Please contact us to get a quote
• If you decide to perform a circuit analysis with a price exceeding US$10,000, we will provide a 25% discount on the cost of chip imaging; for circuit analysis above US$20,000, we will discount 50% of the cost of chip imaging.
