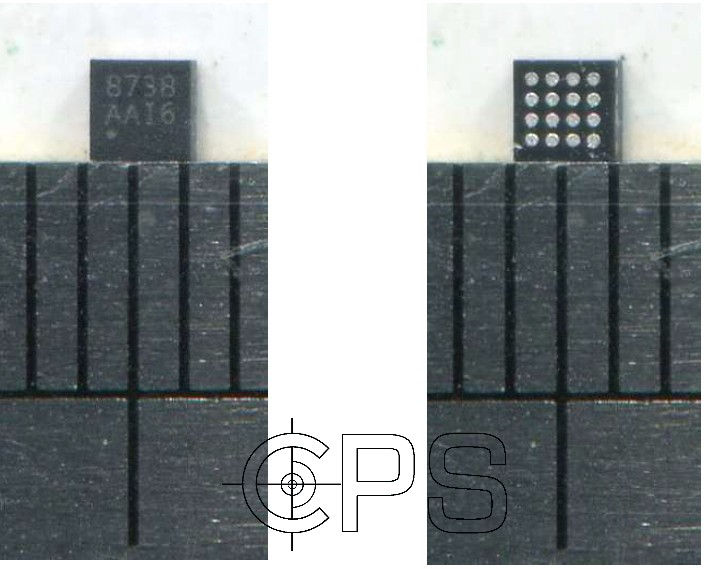

AW8738

AW8738 is designed for the elimination of intelligent machine music noise, enhance the overall sound quality and the development of high efficiency, low noise, constant high volume of the eighth generation K class music amplifier.

AW8738 integrated Ai for the proprietary Multi-Level AGC sound algorithm, effectively eliminate the music playback in the noise, while improving the sound quality volume. AW8738 with up to 93% efficiency K-Chargepump charge pump boost technology, the overall efficiency of the amplifier up to 83%; AW8738 bottom noise as low as 40μV, with up to 99.6dB signal to noise ratio (SNR), 0.008% ultra-low distortion And the unique Multi-Level AGC technology, bringing high quality music to enjoy.

(1) Brigen format which includes die layout database & annotated circuit extraction and hieratical circuit analysis schematics,

(2) PDF format of circuit analysis

(3) EDIF format data (only use for reference)

Partail Analog Circuit Analysis

• We can provide a brief report for your further evaluation. Please contact us and you will get it soon.
• The "Option" in the deliverables means you can buy it separately, and please contact us for further information.
