Delivered software

Others deliver a PDF. We deliver a circuit you can probe.

BrigenOne is the circuit analysis viewer CPS developed in house. What you receive is not a stack of static images but live data you can trace, cross-reference and measure — no installation, just download and open.

Install
None — single executable
Collaboration
Concurrent multi-user over the network
Viewing
Dual screen: layout and schematic side by side
System
All Windows versions supported

Why this matters

The value of a circuit analysis report depends on how quickly your engineers can read it.

The usual delivery

A stack of PDFs

To confirm where a device sits in the layout, you compare coordinates across dozens of images by hand. To follow a net, you trace it with your eyes. Half an hour on a single net is normal.

BrigenOne

Interactive circuit data

Select a device in the schematic, press one key, and it is highlighted on the layout — and the reverse. Highlight a whole net with one key, synchronised across views. Step through metal layer imagery to see which layer a route sits on.

This is one of the few things about CPS that cannot be copied. There are plenty of reverse engineering firms; keeping a software team and handing customers the tool is another matter.

Core functions

Everything else is support. These are what actually make a report faster to read.

  • R

    Cross Reference — layout and schematic, both directions

    Select a device in the schematic (say C12) and press R: it is highlighted in the annotation view. Select M906 in the layout and press R: the schematic it belongs to opens with the device highlighted.

    This is the most used key in the whole application. The correspondence between layout and schematic is the hardest part of a reverse engineering report to build yourself, and the most valuable.

  • Shift+9

    Cross Probe — pick a net in the schematic, see the real routing on the die

    Hover a net in the schematic and press Shift+9. The net is highlighted not only in the schematic but on the corresponding physical routing in the layout — which layer it runs on, how far it detours, how wide it is.

    For analog work this is the function that matters most. Analog designs are frequently won or lost in the layout rather than the schematic: the width of a supply trace, the symmetry of a differential pair, the parasitic capacitance on a critical node. None of that is legible until the circuit and the physical routing are in front of you together.

  • N9Ctrl+9

    Net and Probe — trace several nets at once

    N highlights and selects the entire net under the cursor. 9 is Probe, which also highlights a whole net but gives each net its own colour, so several can be traced at once without confusion.

    Ctrl+9 clears every highlight in one go.

  • Search

    Finding cells and devices

    A large die can carry hundreds of cells in its hierarchy. The search bar finds them directly by cell name or instance name and opens the matching view, without expanding the hierarchy tree level by level.

    To locate PMOS M336 in the Top annotation view: choose search type Instance name, enter M336, press Enter — the device is highlighted immediately.

  • F1F10

    Layered background imagery

    The background window holds the real captured layer imagery. F1 through F10 map directly to Metal 1 through Metal 10; a dedicated key toggles between PL and PS images.

    You can also scroll through layers in the background panel, or double-click a layer to jump to it. What you see is an actual photograph of the die, not an illustration.

  • KQ

    Measurement and properties

    Press K in the annotation view for the ruler and measure distances directly on the die image; Esc exits. Select any device and press Q for the property window: instance name, device type and parameters.

Dual screen

Dual screen is the default: annotation on the primary display, schematic on the second. Under BRIGEN → Setting → Screen you can put annotation or schematic on the left instead. Watching layout and schematic together without switching windows is the difference you feel most in daily work.

Multi-user

BrigenOne supports concurrent use over the network. Several engineers on your team can open and read the same project at the same time — no waiting for each other, and no copying files onto individual machines. When you discuss a circuit, everyone is looking at the same data.

The functions in use

Bi-directional cross-referencing is easier to show than to describe. The screenshots below are from a delivered project.

R

Pick a device in the schematic, see where it sits on the die

This die holds tens of thousands of transistors. Locating one of them on the layout by hand is a needle in a haystack — the slowest and most error-prone step in reading any reverse engineering report.

Schematic

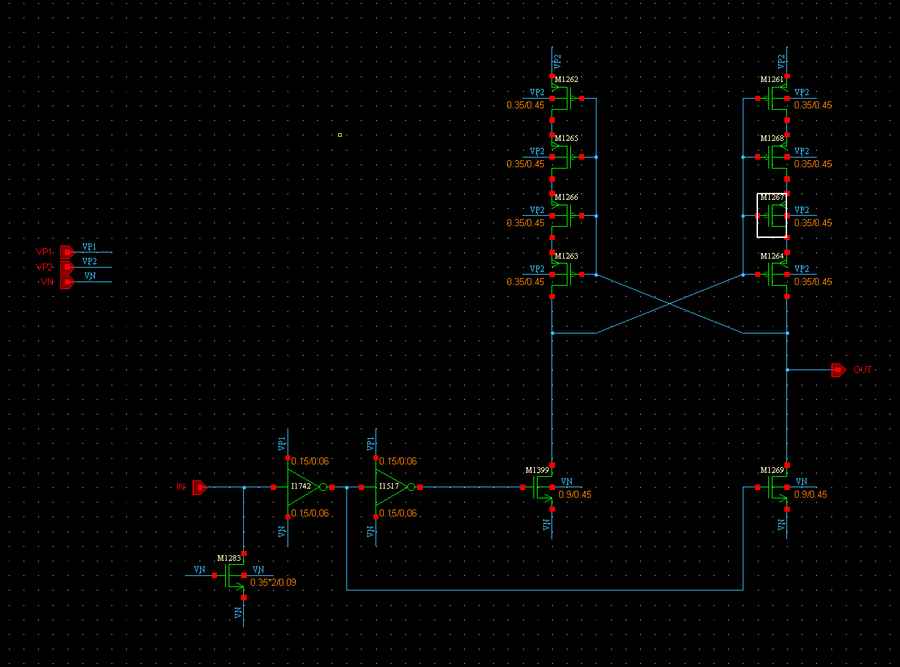

BrigenOne schematic view with transistor M1287 selected in a white box, surrounding devices annotated with channel width and length

Transistor M1287 selected in a lower-level schematic (white box), with each device annotated with its width/length ratio — 0.35/0.45 here.

Layout — press R

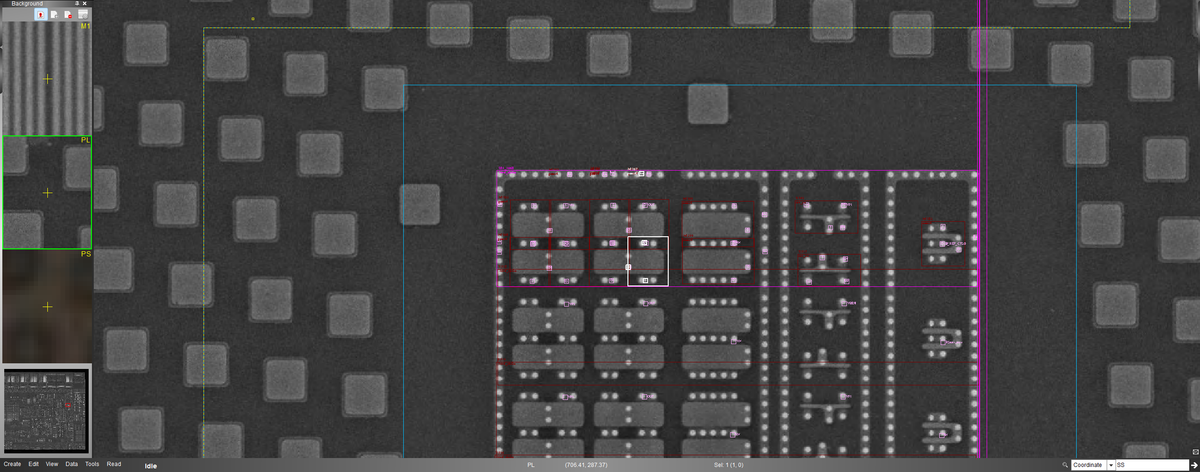

SEM die imagery with the previously selected transistor outlined in white at its physical location, surrounded by red device outlines and contact markers

The same device is immediately marked on the captured die imagery (white box). Red outlines are other identified devices; magenta marks contacts.

Shift+9

Pick a net in the schematic, see how it actually routes

For analog work this matters most. The width of a supply trace, the symmetry of a differential pair, the parasitic capacitance on a critical node — none of it is legible until the circuit and the physical routing are in front of you together.

Schematic

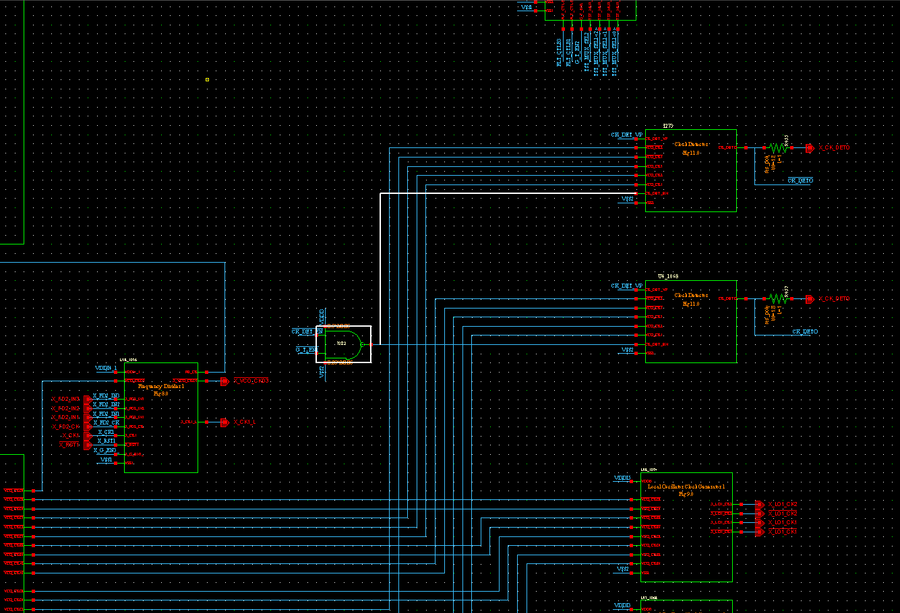

BrigenOne schematic view with one net highlighted in white as it crosses several functional blocks

A net selected in the schematic, highlighted in white, showing which functional blocks it passes through.

Layout — press Shift+9

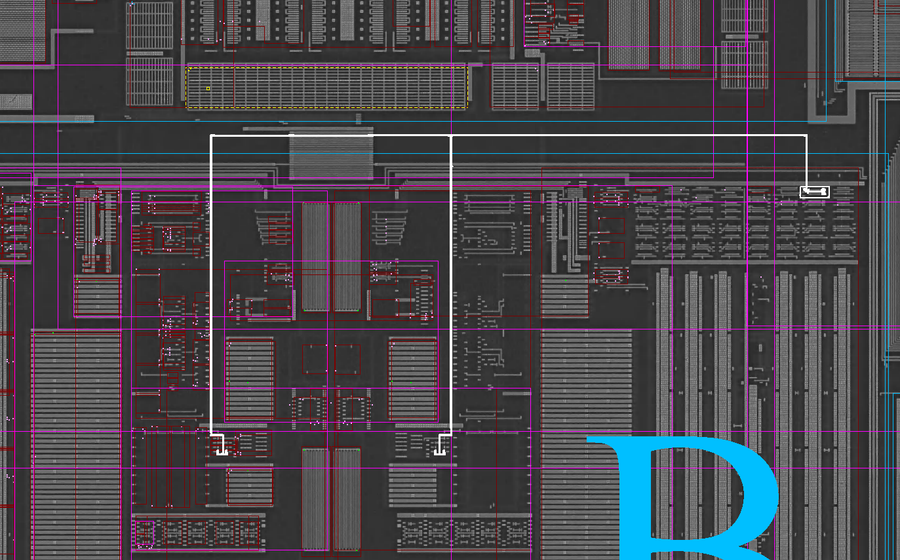

Physical metal routing of the selected net highlighted in white across the die layout

The same net as it is physically routed: how far it detours, which layer it runs on, how wide it is.

Four views

Any cell opens in four ways. Select a name in the Cellview panel and four icons appear.

Annotation View

The real die image overlaid with device and routing annotation. This is the main view for judging physical layout.

Schematic View

The recovered circuit, partitioned by functional block with correctly named connections.

Annotation Symbol View

The cell’s symbol representation within the layout hierarchy.

Schematic Symbol View

The cell’s symbol representation within the circuit hierarchy.

Navigating hierarchy

The Cellview panel switches between BlockCell and CellDefinition: hierarchical schematics live in BlockCell, digital cells in CellDefinition. Double-click a LibDevice that has schematic and symbol views to descend into its internal circuit.

Finding a device

The search bar at lower right finds devices by instance name and other criteria. To locate PMOS M336 in the Top annotation view: open the Top annotation view, choose search type Instance name, enter M336, press Enter — the device is highlighted.

Known limitations

Descend opens a new view; there is no return-to-parent function — simply close the view tab when finished. BrigenOne is also a read-only viewer, so Create and Edit in the menu are unavailable. To modify circuits, use the Cadence-compatible files delivered alongside.

Keyboard reference

Cadence conventions throughout — engineers who have used Composer barely need to relearn anything.

Function keys

FunctionKeyView
Cross ReferenceRBoth
Highlight netNBoth
Probe9Both
Cross ProbeShift+9Both
Clear probesCtrl+9Both
Property windowQBoth
RulerKAnnotation
Download dataDBoth
PanZBoth
Fit graphFBoth
Fit backgroundShift+FAnnotation
Popup windowCtrl+~Both

View control

ActionHow
Zoom inCtrl + scroll up
Zoom outCtrl + scroll down
Continuous zoom inHold left mouse button
Continuous zoom outHold right mouse button
Zoom to areaRight-drag; the yellow box is the zoom region
PanArrow keys

Layer imagery

LayerKey
Metal 1 – Metal 10F1 – F10
PL / PS toggleDedicated toggle key
Specific layerDouble-click it in the background panel

Getting started

Three steps

  1. Download Brigen.exe. No installation — double-click to run.
  2. Log in with the account and password CPS provides.
  3. Pick your project on the project management page, click Ann to open the annotation view, and start browsing.
Account

BrigenOne needs an account issued by CPS to open project data. It is provided with your circuit analysis report.

System requirements

Operating systemAll Windows versions (32/64-bit)
Processor1.3 GHz or faster
Memory1 GB minimum, 2 GB or more recommended
Disk spaceAt least 100 MB, depending on data volume
Display800×600 or higher
NetworkConcurrent multi-user access to the same project
BrigenOne top-level schematic view showing functional blocks and their interconnections, with a property panel on the right
The BrigenOne top-level hierarchy: level shifters, current sources, regulators and power switches as functional blocks, with the property panel showing the selected instance.
