FSA646
2:1 MIPI D-PHY(2.5Gbps) 4-Data Lane Switch
Switch Partial circuit analysis

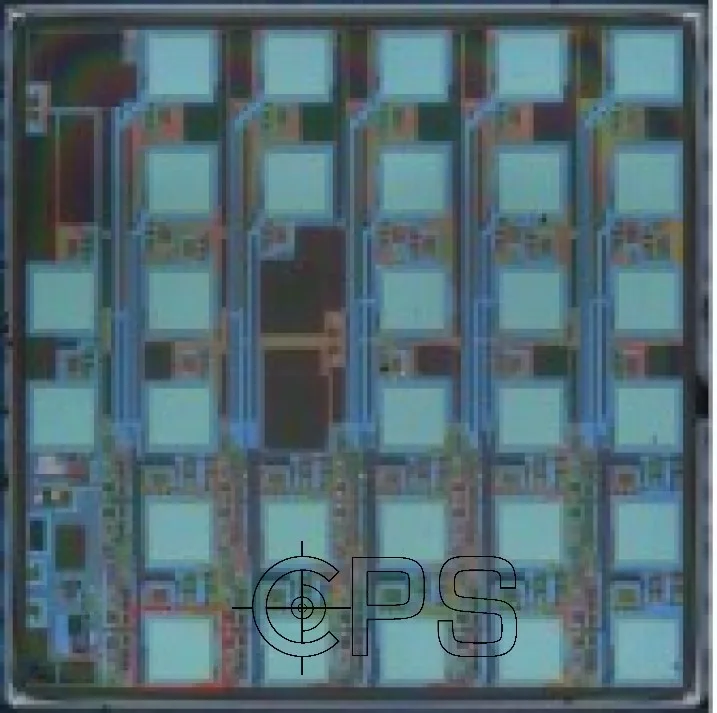

Die photo
Specification
| Part number | FSA646 |
|---|---|
| Manufacturer | Fairchild |
| Device type | Switch |
| Description | 2:1 MIPI D-PHY(2.5Gbps) 4-Data Lane Switch |
| Analysis depth | Partial circuit analysis |
| Report contents | Brief Report+Partial CA |
What you receive
Cadence-compatible schematics
Compatible with Cadence Composer — edit it or convert to a netlist for simulation (simulation itself is not included).
Hierarchical PDF report
A PDF laid out by circuit hierarchy, readable on any platform, with die photo, device summary and architecture list.
This report comes from a Non-Exclusive commission and can be supplied to others. Exclusive commissions are never resold and therefore never appear in this library.
