MAX22088
Homebus Transceiver
Others Partial circuit analysis

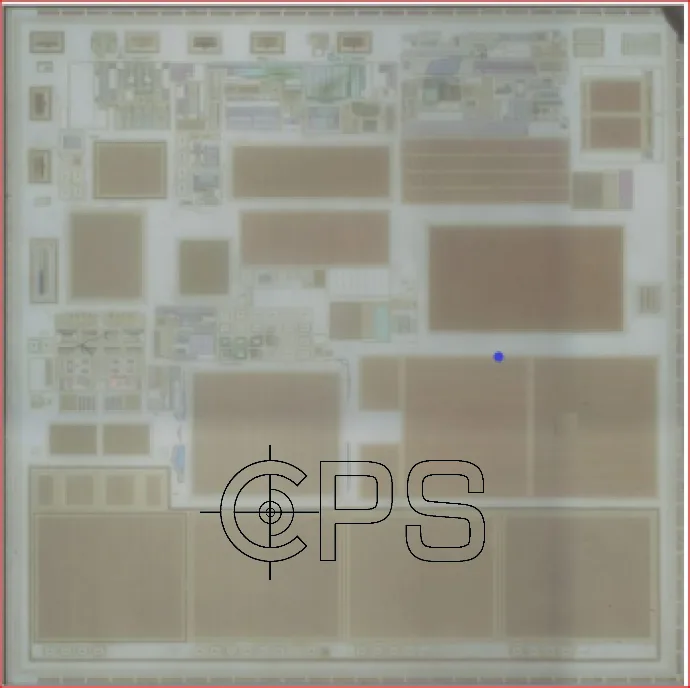

Die photo
Specification
| Part number | MAX22088 |
|---|---|
| Manufacturer | Maxim |
| Device type | Others |
| Description | Homebus Transceiver |
| Analysis depth | Partial circuit analysis |
| Report contents | Brief Report+Partial CA |
What you receive
Cadence-compatible schematics
Compatible with Cadence Composer — edit it or convert to a netlist for simulation (simulation itself is not included).
Hierarchical PDF report
A PDF laid out by circuit hierarchy, readable on any platform, with die photo, device summary and architecture list.
This report comes from a Non-Exclusive commission and can be supplied to others. Exclusive commissions are never resold and therefore never appear in this library.
