TPS65632
Triple Outputs AMOLED Display Power Supply
Power Management Full circuit analysis
Specification
| Part number | TPS65632 |
|---|---|
| Manufacturer | TI |
| Device type | Power Management |
| Description | Triple Outputs AMOLED Display Power Supply |
| Analysis depth | Full circuit analysis |
| Report contents | Brief Report+Full CA |
What you receive
Cadence-compatible schematics
Compatible with Cadence Composer — edit it or convert to a netlist for simulation (simulation itself is not included).
Hierarchical PDF report

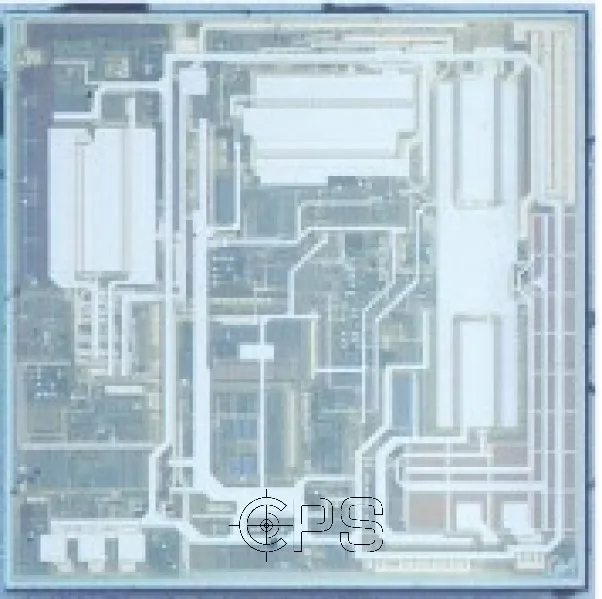

A PDF laid out by circuit hierarchy, readable on any platform, with die photo, device summary and architecture list.
This report comes from a Non-Exclusive commission and can be supplied to others. Exclusive commissions are never resold and therefore never appear in this library.
